产品说明
额定电压：600V，额定温度：80℃、90℃、105℃

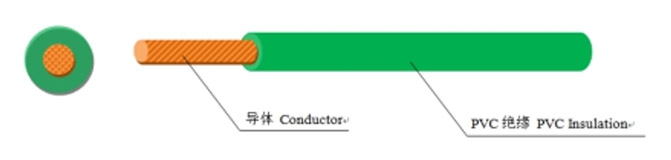

导体：使用单根或绞线30AWG以上裸铜或镀锡丝
PVC绝缘：可通过UL VW-1及CUL FT1垂直耐燃试验
应用：适用于一般电子、电器设备内部连线
|
导体 Conductor |
绝缘 Insulation |
标准 长度Standard Length |
|||
|
线规 Spec |
线数/ |
直径 Dia. |
标称厚度 Nom.Thick. |
标称外径 |
|
|
AWG |
No./mm |
mm |
mm |
mm |
Ft(M) |
|
30 |
7/0.10 |
0.30 |
0.76 |
1.88 |
2000 ft (610m)
1000 ft (305m) |
|
28 |
7/0.127 |
0.38 |
0.76 |
1.96 |
|
|
26 |
7/0.16 |
0.48 |
0.76 |
2.06 |
|
|
24 |
11/0.16 |
0.61 |
0.76 |
2.19 |
|
|
22 |
17/0.16 |
0.76 |
0.76 |
2.34 |
|
|
20 |
26/0.16 |
0.94 |
0.76 |
2.52 |
|
|
18 |
41/0.16 |
1.18 |
0.76 |
2.76 |
|
|
16 |
26/0.254 |
1.49 |
0.76 |
3.07 |
|
|
14 |
41/0.254 |
1.88 |
0.76 |
3.46 |
|
|
12 |
65/0.254 |
2.37 |
0.76 |
3.95 |
|
|
10 |
105/0.254 |
3.40 |
0.76 |
5.0 |
|
|
10 |
49/0.37 |
3.38 |
0.76 |
5.0 |
|
|
8 |
168/0.254 |
4.31 |
1.14 |
6.6 |
|
|
6 |
124/0.37 |
5.43 |
1.53 |
8.5 |
|
|
4 |
196/0.37 |
6.78 |
1.53 |
9.9 |
|
|
2 |
312/0.37 |
9.04 |
1.53 |
12.1 |
|
|
1 |
824/0.254 |
9.80 |
1.53 |
13.0 |
|
|
1/0 |
1050/0.254 |
10.86 |
2.03 |
15.0 |
|
|
2/0 |
616/0.37 |
12.3 |
2.03 |
16.5 |
|
|
3/0 |
776/0.37 |
13.8 |
2.03 |
17.9 |
|
|
4/0 |
980/0.37 |
15.4 |
2.03 |
19.6 |
|
|
28 |
1/0.32 |
0.32 |
0.76 |
1.90 |
|
|
26 |
1/0.404 |
0.404 |
0.76 |
1.98 |
|
|
24 |
1/0.511 |
0.511 |
0.76 |
2.09 |
|
|
22 |
1/0.643 |
0.643 |
0.76 |
2.22 |
|
|
20 |
1/0.813 |
0.813 |
0.76 |
2.39 |
|
|
18 |
1/1.02 |
1.02 |
0.76 |
2.60 |
|
|
16 |
1/1.29 |
1.29 |
0.76 |
2.87 |
|
