产品说明
额定电压：300V，额定温度：80℃

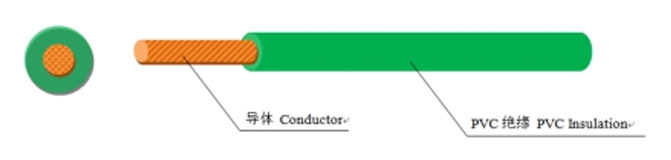

导体：使用单根或绞线32-16AWG裸铜或镀锡丝
PVC绝缘：可通过UL VW-1及CUL FT1垂直耐燃试验
应用：适用于一般电子、电器设备内部连线
|
导体类型 Conductor Type |
导体 Conductor |
绝缘 Insulation |
标准 长度Standard Length |
|||
|
线规 Spec |
线数/ |
直径 Dia. |
标称厚度 Nom.Thick. |
标称外径 |
||
|
AWG |
No./mm |
mm |
mm |
mm |
Ft(M) |
|
|
绞合导体 Stranded Conductor |
30 |
7/0.10 |
0.30 |
0.38 |
1.1 |
2000 ft (610m)
1000ft (305m) |
|
28 |
7/0.127 |
0.38 |
0.38 |
1.2 |
||
|
26 |
7/0.16 |
0.48 |
0.38 |
1.3 |
||
|
24 |
11/0.16 |
0.61 |
0.38 |
1.45 |
||
|
24 |
7/0.20 |
0.60 |
0.38 |
1.45 |
||
|
22 |
17/0.16 |
0.76 |
0.38 |
1.6 |
||
|
22 |
7/0.254 |
0.76 |
0.38 |
1.6 |
||
|
20 |
26/0.16 |
0.94 |
0.38 |
1.85 |
||
|
20 |
7/0.32 |
0.96 |
0.38 |
1.85 |
||
|
18 |
41/0.16 |
1.18 |
0.38 |
2.1 |
||
|
16 |
26/0.254 |
1.49 |
0.38 |
2.4 |
||
|
单根导体 solid |
28 |
1/0.32 |
0.32 |
0.38 |
1.15 |
|
|
26 |
1/0.404 |
0.404 |
0.38 |
1.25 |
||
|
24 |
1/0.511 |
0.511 |
0.38 |
1.40 |
||
|
22 |
1/0.643 |
0.643 |
0.38 |
1.55 |
||
|
20 |
1/0.813 |
0.813 |
0.38 |
1.70 |
||
|
18 |
1/1.02 |
1.02 |
0.38 |
1.96 |
||
|
16 |
1/1.29 |
1.29 |
0.38 |
2.15 |
||
